Raz-AT Shower Commode

Raz-AT Shower Commode

The Raz-AT (Attendant Tilt) mobile shower commode chair from RAZ tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes locking gas springs that help lift the seat to an upright position, making the Raz-AT one of the easiest tilting mobile shower chairs to operate.

The Raz-AT mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), 4” of height adjustment, adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan.

The easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.

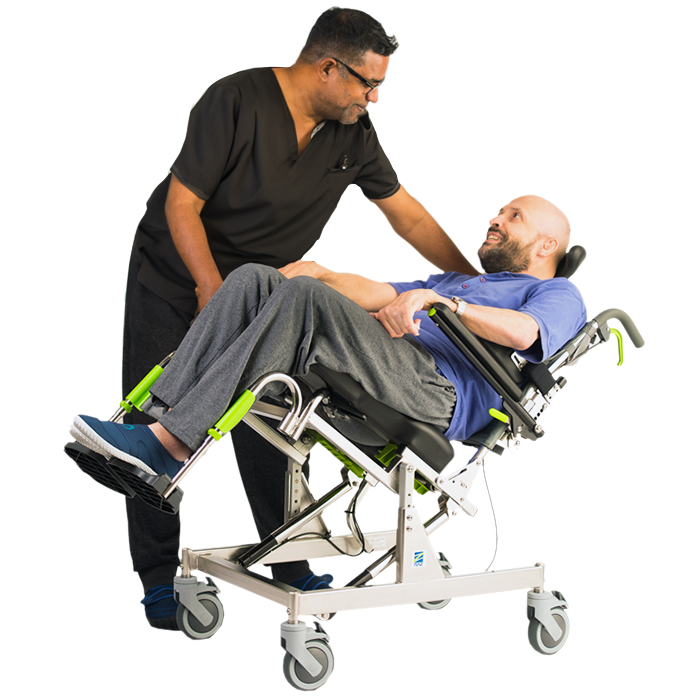

A client in the RAZ-AT shower commode.

Features


Tilt Function

  • Seat frame tilts for extra pressure reduction and comfort
  • Locking pneumatic springs provide infinite adjustment up to 40°
  • Pressurized springs also help lift seat frame to an upright position
  • Conveniently located tilt triggers provide smooth tilt control

Adjustable Footrests

  • Removable for transfers and cleaning
  • Swing in and out easily
  • Flip-up footplate
  • Adjust for leg length without tools
  • Available in regular length 16″-20½” and extended length 18″-22½”

Molded Seat

  • Contoured for pressure reduction and pelvic stability
  • Soft integral-skin foam for comfort and durability
  • Available with an open or bridged front
  • Available sizes: 18″ W x 17″ D, 18″ W x 20″ D

Ischial Pelvic Alignment System

  • Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
  • Allows centering of the aperture (opening) around the users’ ITs
  • Seat locks in place for transfers
  • Removes easily for cleaning
  • Optional spacers for anterior or posterior seat angle adjustment

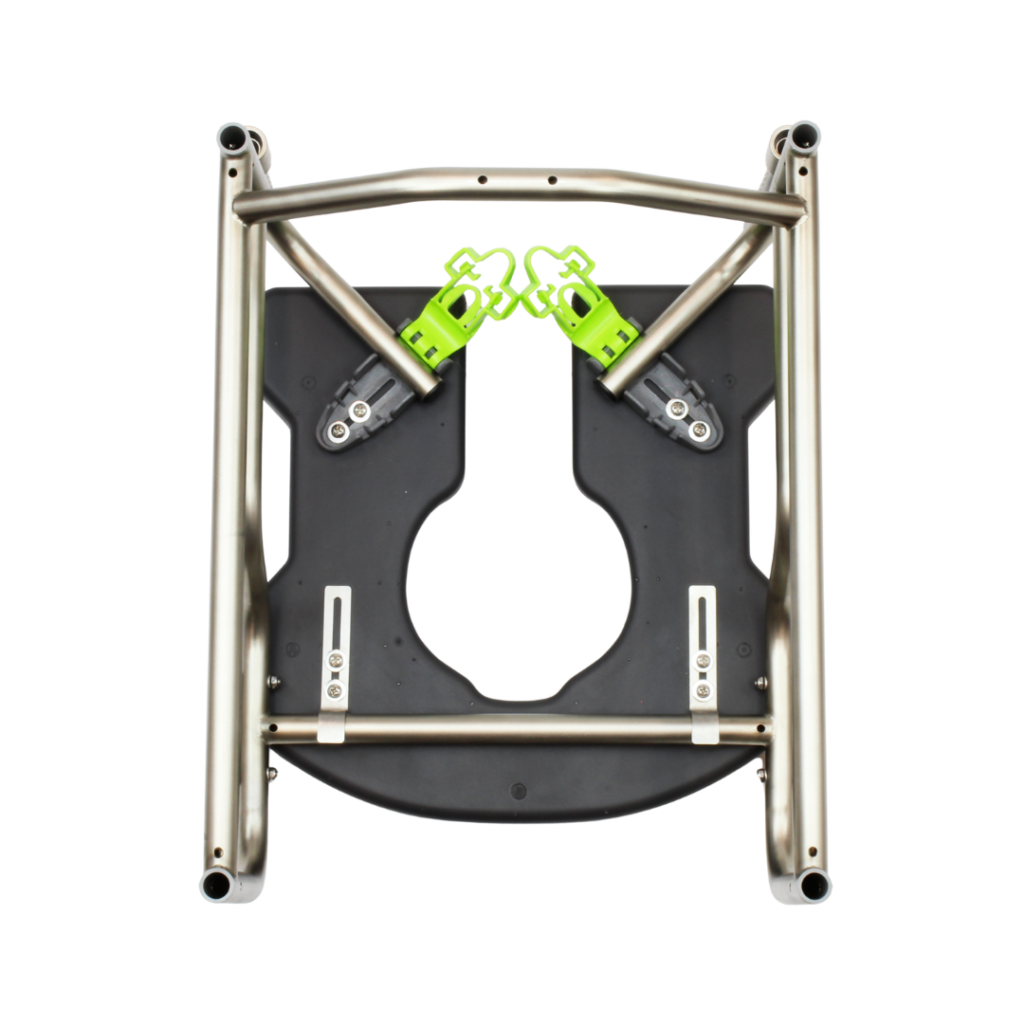

Adjustable rear seat on the RAZ-AT commode.

Fit is everything

The way a product feels, fits, and moves is at the heart of how well it will suit you, and your daily life.

That’s why we offer clients the opportunity to visit our locations and get a true sense of any given product. Motion isn’t a place. It’s a partnership, and a promise: we work with you to turn our products into possibilities.

Product Specifications
Weight capacity 350 lbs (160 kg)
Frame width Standard: 18" (46 cm)
Overall width 22.5" (57 cm) with Standard Arm Pad
Overall length 39” (99 cm)
Seat width 18" (46 cm)
Seat depth 16" or 19" (40 or 48 cm)
Clearance height under seat 17" - 21" (43 - 53cm) with pan brackets 17.75" - 21.75" in 1" increments (45 - 55 cm)
Armrest height above seat 7.5"- 10.5" in ½" increments (19 - 27 cm)
Seat-to-floor height 21.25" – 25.25" in 1" increments (54 - 64 cm)
Product weight 61 lbs (28 kg)
Frame and hardware material Stainless Steel (Lifetime warranty against corrosion)
